Ref: 9019698

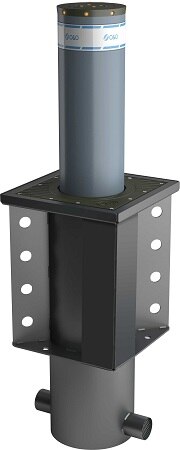

Automatic Bollard OAK 800.4

K4 rated, this heavy duty product is developed for the protection and defense of sensitive and/or strategic sites such as prestigious buildings, hotels etc

Find out more
Comptatible technologies

Benefits

  • Independent hydraulic pump for each bollard: in case of pump failure, the other bollards keep working
  • Impact resistance: up to 730 000 J (calculated)
  • Standard rise time: ≤ 7.0 s
  • Lowering time: typ 4.0 s
  • Max operating frequency: up to 2 000 op./day
  • MCBF: 3 000 000 cycles
  • Obstacle sensing, configurable (with/without movement inversion)
  • Bollard top cover with LED ligths and buzzer
  • Interfaces for remote control (CDS-K)
  • IP Grade: IP67
